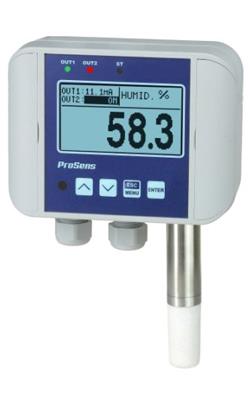

Temperature and Humidity Transmitter THQM2
Bass Intruments, THQM2 Series, Temperature and Humidity Transmitters are transmitters with integrated temperature and humidity sensors. Besides our product with standard analog output, RS485 MODBUS communication is available. Thanks to their universal electrical inputs and outputs, they are controllers that can be used in many applications.
Technicial Specifications
Measuring Range
-30...+120°C, 0...100%RH
Accuracy
<±%0,5°C, + 1,8% RH
Output
2x4-20 mA or 0-10 VDC
Supply
11 ... 36 VDC + 2 Relay
Communication
RS485 MODBUS RTU
Protection
Without IP67 Indicator, With IP65 Indicator
Display
Opt. Graphic LCD 128 x 64
Specifications
2-
Ideal for HVAC Applications
3-
High Definition Graphics
4-
RS485 MODBUS Communication
