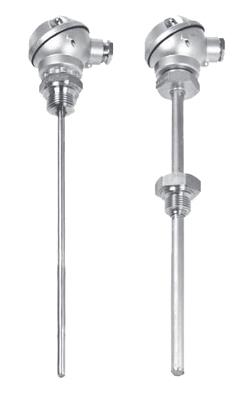

Head Resistance Thermometer TRT

Bass Instruments, TRT Series, Head Resistance Thermometers, machines, tanks, gas and liquid environments etc. It is used in surface measurements such as. PT-100 and NI-100 Head Resistance Thermometer element gives resistance values in accordance with IEC 751 standard. TRT Series Thermometers are manufactured inset. Inset is a second protector placed inside the outer protective cover. The advantage of inset is that only inset is changed without stopping the process. In addition, by providing only the inset of a resistance thermometer with other components such as outer protector and head, more economical material is taken. Generally, TRT series Head Resistance Thermometers, B type Aluminum casting is used. It can be used in C type head when requested.

Technicial Specifications
Connection
G 1", G 1/2", G1/4"
Pressure
100 Bar max. Opt; 300 Bar
Temperature
-200°C...+850°C max.
Body
AISI316
Accuracy
Class A, Class B
Output
35/5000 PT100, PT1000 or 4-20 mA, 2 Wires
Protection
IP65, Ex d II B T6 Flameproof
Specifications
1-
Durable Rugged Design
2-
High Accuracy Level
3-
Wide Range of Usage
4-
Easy montage
