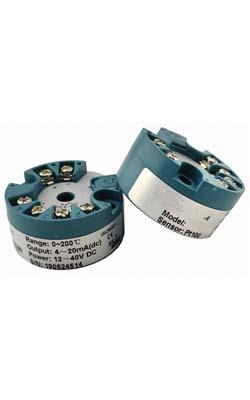

Head Type Converters
Bass Instruments, Head Type Converters are temperature measurement transmitters that are connected to temperature measurement sensors in industrial processes, converting the measured temperature value to 4.20 mA standard analog signal. It is used by mounting the temperature sensors in the standard box called the head and configuring very easily on the computer.
Technicial Specifications
Measuring Range
44 mm x 24.5 mm
Input
mV, PT100, Thermocouple
Electromagnetic Compatibility
According to EN 50081-2 EN50082-2
Body Material
ABS Plastic
Output
2 Wires, 4-20 mA (Opt; HART)
Resolution
0.001 mA (16 Bit)
Temperature
-40°C...+85°C
Specifications
1-
Internal Protection Against Polarity Change
