Hydrostatic Level Transmitter MPS580

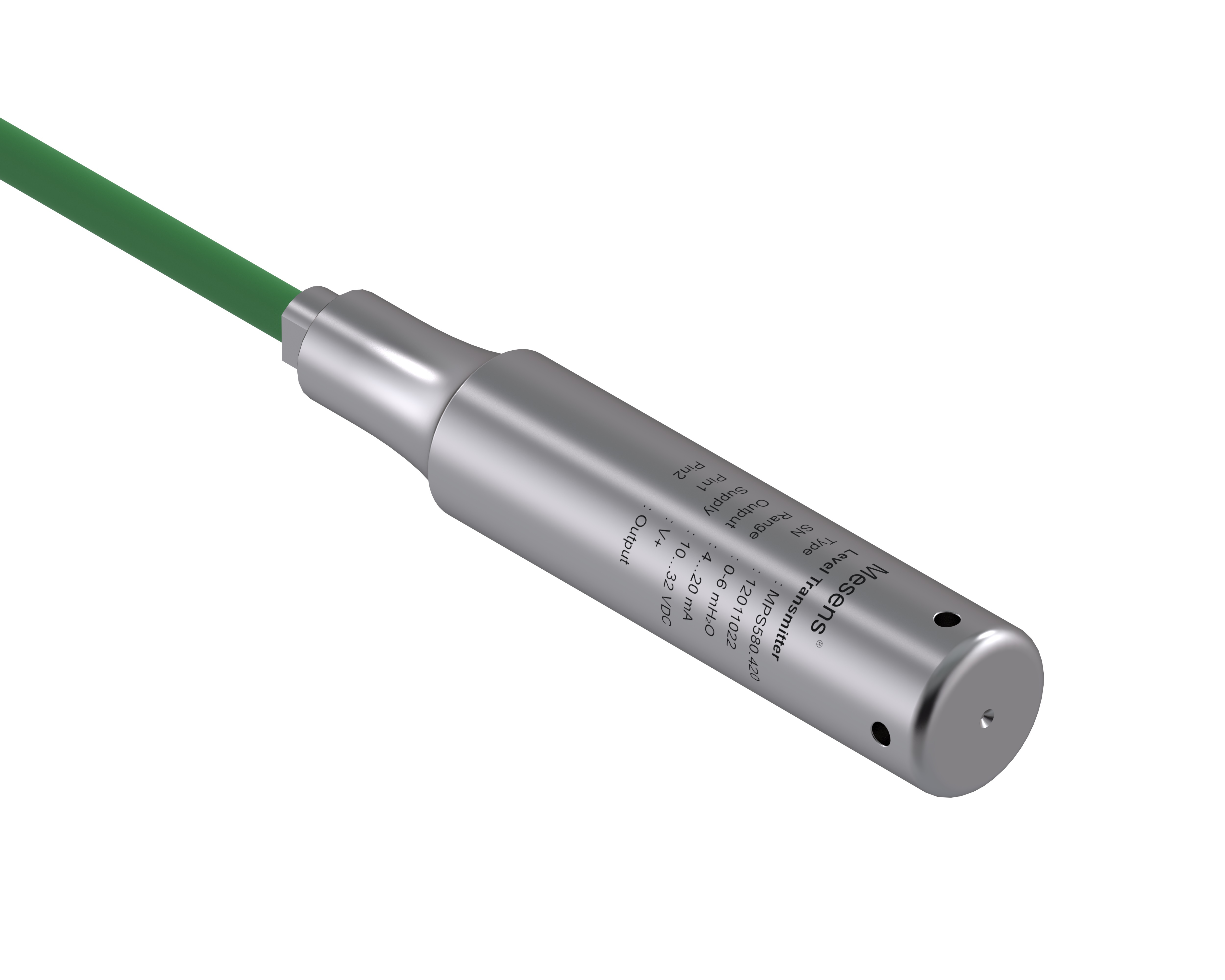

Bass Instruments MPS580 Hydrostatic Level Transmitter are level transmitters used to measure water levels in groundwater, wastewater, seawater and ponds, especially designed to measure water levels in deep wells. MPS580 series Level Transmitters, which can be used easily in many fluids with its stainless steel body, can be used in sea water and many chemicals optionally with PTFE body. With a sensor diameter of 27 mm, the MPS580 can be used in many wells.
Technicial Specifications
Connection
Immersion Type
Measuring Range
0...1 mH2O- 0...250 mH2O
Accuracy
<± 0.5% Opt; 0,2%
Diaphragm
AISI316L or Seramic
Body
AISI316, (Opt; PTFE)
Specifications
2-
IP68 Protection Up To 250 m Depth
3-
Wear Resistant Stainless Steel Body
4-
Optional PTFE Body For Corrosive Chemicals
