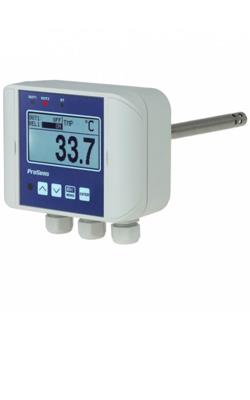

Industrial Temperature and Humidity TransmitterTHQM4
Bass Intruments, THQM4 Series, Temperature and Humidity Transmitters are transmitters with integrated temperature and humidity sensors. Besides our product with standard analog output, RS485 MODBUS communication is available. Thanks to their universal electrical inputs and outputs, they are controllers that can be used in many applications. Thanks to its rear outlet sensor, it can be easily installed in ducts. There are two different plunge lengths, 20 cm or 30 cm.
Technicial Specifications
Measuring Range
-50...+120°C, 0...100%
Accuracy
<±%0,5°C, + 1,8% RH
Output
2x4-20 mA or 0-10 VDC
Supply
11 ... 36 VDC + 2 Relay
Communication
RS485 MODBUS RTU
Protection
Without IP67 Indicator, With IP65 Indicator
Display
Opt. Graphic LCD 128 x 64
Specifications
3-
Easy Reading Indicator
4-
Ideal for Heavy Conditions
